Engineering with shape-memory alloys presents a strict binary: either the material performs perfectly, or it fails catastrophically. Material performance depends entirely on environmental operating conditions and precise phase transformations. Miscalculating these phase transition points introduces severe engineering risks. Specifying an incorrect transition temperature causes immediate device failure. Medical stents might permanently deform inside a patient. Aerospace actuators could fail to deploy at high altitudes.
Mastering the specification, testing, and manufacturing variables of the nitinol Af temperature forms the critical path to success. This mastery ensures reliable superelasticity or shape memory behavior in the final product. Engineers must understand how thermal thresholds dictate mechanical output. You must control these variables throughout the entire manufacturing lifecycle. This approach prevents costly redesigns and guarantees reliable component performance in the field.
Definition of Af: The Austenite Finish (Af) temperature is the exact thermal threshold where Nitinol completely transitions into its rigid, austenitic phase, unlocking its full superelastic or shape recovery properties.
Application Dependency: For superelastic medical devices, the Af must be engineered below human body temperature (37°C); for shape memory actuators, the Af dictates the exact trigger temperature for mechanical work.
Not a Standalone Metric: While critical, nitinol Af temperature cannot be used as the sole predictor of material properties; mechanical testing and operating environment mapping are equally essential.
Manufacturing Sensitivity: Final component Af is highly volatile. It shifts significantly based on cold working, heat treatment (training), and the specific alloy composition (Nickel-Titanium ratio) used during manufacturing.
Table of Contents

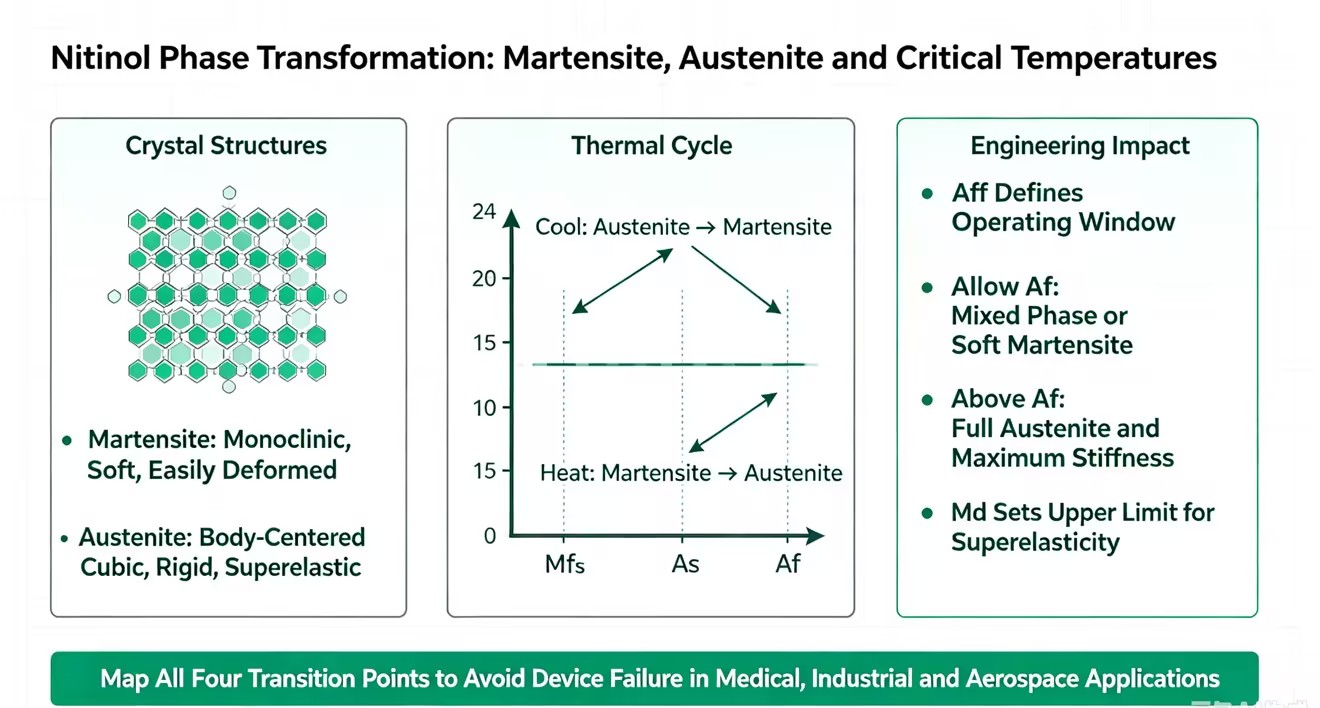

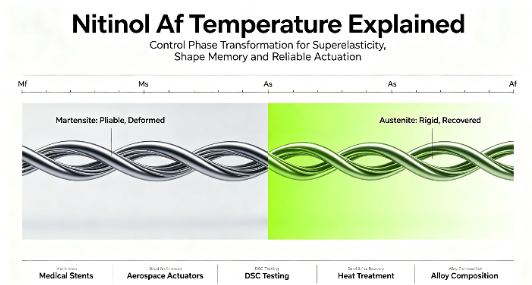

Shape-memory alloys function through a reversible solid-state phase transformation. This crystallographic shift occurs between two distinct phases. The low-temperature phase is called Martensite. Martensite features a monoclinic crystal structure. It is pliable and easily deformed. It accommodates strain through a process called detwinning. When you apply mechanical stress to martensite, the atomic planes shift and reorient themselves without breaking any chemical bonds. You can bend the metal easily, and it holds that deformed shape.
The high-temperature phase is called Austenite. Austenite features a body-centered cubic structure. It is highly ordered, rigid, and strong. Heating the alloy drives the transformation from the pliable martensitic state into the rigid austenitic state. Cooling reverses the process. This transformation does not happen at a single specific degree. It occurs across a defined thermal window. Engineers map out this complete transformation window using four critical transition points to contextualize the overall material behavior.
Martensite Finish (Mf): The material is 100% martensitic. It sits in its fully yielded, most pliable state.
Martensite Start (Ms): The cooling transformation begins. The rigid austenite starts converting back into pliable martensite.
Austenite Start (As): The heating transformation begins. The deformed martensite starts reverting to its original austenitic shape.
Austenite Finish (Af): The material is 100% Austenite. It exhibits maximum superelasticity and stiffness.
Engineers must distinguish between the "Active" and "Ingot" transition points. The Ingot Af represents the theoretical threshold of the raw material. Raw material suppliers measure this on the unprocessed ingot right after vacuum melting. The Active Af represents the functional threshold of the finished manufactured component. Extensive processing separates the raw ingot from the final component. Laser cutting, electropolishing, cold drawing, and shape setting drastically alter the internal microstructure. The Active Af is the only metric that dictates actual field performance.
Metric Type | Measurement State | Testing Standard | Engineering Value |
|---|---|---|---|
Ingot Af | Raw, unprocessed alloy | ASTM F2004 (DSC) | Verifies baseline chemistry and raw material quality. |
Active Af | Finished, processed component | ASTM F2082 (Bend/Recovery) | Dictates actual field performance and mechanical behavior. |
Engineers frequently require materials capable of surviving massive deformation. Traditional metals yield and permanently kink at around 0.5% strain. Shape-memory alloys can undergo up to 8% strain and return to their original shape. They achieve this without permanent kinking. This property is called superelasticity. Superelasticity relies entirely on stress-induced martensite.
Superelasticity only exists within a highly specific thermal window. This window sits directly above the nitinol Af temperature. It ends at the Martensite Desist (Md) temperature. When you apply a load to the austenitic material, the stress forces a localized transformation into martensite. The material absorbs the strain by detwinning. When you remove the load, the material instantly reverts to austenite. It snaps back to its original geometry.
Operating too close to the transition threshold reduces the loading plateau stress. The material feels softer and exerts less return force. If you design a guidewire to operate just 1°C above its transition point, the physician will complain that the wire feels mushy and lacks pushability. As the operating temperature increases further above the threshold, the stress required to induce martensite also increases. The material feels stiffer. If the operating environment gets too warm, it surpasses the Md point. At this extreme, the stress required to induce martensite exceeds the conventional yield strength of the alloy. The material loses its superelasticity entirely. It suffers irreversible, conventional plastic deformation.
Thermal actuators perform mechanical work at highly specific environmental trigger points. Engineers design these actuators to replace bulky motors, solenoids, or wax motors. They provide high energy density in a compact footprint. The shape memory effect drives this actuation.
Heating the deformed Nitinol past its transition threshold forces the shape recovery. You deform the pliable martensite at a low temperature. You apply heat. As the temperature crosses the threshold, the crystal lattice forcefully realigns into austenite. This realignment generates significant mechanical force. Actuators use this force to open fluid valves, release aerospace latches, or deploy structural panels.
The hysteresis loop heavily impacts actuator performance. Hysteresis is the temperature gap between the heating recovery curve and the cooling deformation curve. A narrow hysteresis loop allows for rapid cycle times. The actuator resets quickly upon cooling, which is ideal for high-frequency valves. A wide hysteresis loop provides environmental stability. It prevents ambient temperature fluctuations from accidentally triggering or resetting the mechanism. Engineers manipulate alloy composition and heat treatments to tune this hysteresis loop for specific cycle time requirements.
Medical implants and surgical tools must remain fully superelastic inside the human body. Stents, heart valve frames, and orthodontic archwires rely on outward radial force to function. Orthopedic staples use shape recovery to compress bone fractures. Guidewires must navigate tortuous vascular pathways without kinking.
The Active Af for these medical devices is typically specified between 15°C and 30°C. Human core body temperature is 37°C. Specifying the transition threshold well below 37°C creates a critical safety margin. This margin ensures the device remains 100% austenitic upon deployment. Why not specify it at 35°C? During a procedure, a surgeon might inject room-temperature saline into the catheter. This cold flush drops the local temperature. If the threshold sits at 35°C, the cold saline pushes the stent into a mixed martensitic state. The stent loses its radial force and could migrate down the blood vessel. The 15°C to 30°C range prevents this failure mode.
This specification strategy introduces complex handling and storage implications. An alloy designed to be fully austenitic at 37°C often requires extreme cooling for assembly. To reach the Martensite Finish (Mf) state, the material must be chilled to sub-zero temperatures. Engineers frequently use liquid nitrogen or chilled alcohol baths at -10°C. This chilling makes the material fully pliable. Pliability is mandatory for crimping stents onto delivery balloons or loading heart valves into narrow catheters.
We follow a strict sequence for loading these devices:
Submerge the expanded stent in a -10°C chilled alcohol bath.
Wait for the material to fully transition below its Martensite Finish (Mf) point.
Transfer the pliable stent to the mechanical crimping die.
Compress the stent radially onto the delivery catheter balloon.
Apply a constraining sheath to hold the geometry before the material warms up to room temperature.
Regulatory bodies mandate strict documentation for these processes. FDA and ISO requirements demand rigorous testing of phase transition temperatures in medical device submissions. You must prove the final manufactured component maintains the specified thermal safety margin. Failure to document the Active Af leads to immediate regulatory rejection.
Industrial and aerospace applications demand reliable deployment in extreme environments. Automotive fluid valves must actuate at precise engine coolant temperatures. Satellite release mechanisms must deploy solar panels when exposed to direct solar radiation. Fire suppression systems require fail-safe thermal triggers.
Selecting the correct threshold requires mapping the entire environmental profile. You must align the transition point with the specific thermal trigger required for actuation. You must also factor in ambient temperature fluctuations. If an aerospace pin puller sits in a hot hangar before launch, ambient temperatures can reach 60°C. The actuator must not prematurely deploy. Engineers specify higher transition thresholds for these applications. They often utilize specialized high-temperature alloys or specific heat treatments to push the actuation point above 80°C or 100°C.
A common mistake is treating the transition temperature as the main indicator of Nitinol performance. While important, it does not guarantee consistent mechanical behavior. Over-reliance on this metric can lead to unnecessary material rejection, higher costs, and supply chain delays.
Two Nitinol batches with the same transition temperature may still differ in stiffness, plateau stress, and fatigue life. Factors such as grain size, inclusions, and surface finish also affect performance. Therefore, thermal data should always be combined with mechanical testing, especially for cyclic loading applications.
Validating the transition threshold requires precise analytical methods. Engineers utilize two primary testing standards. Each method serves a distinct purpose in the manufacturing lifecycle.
Testing Method | Standard | Primary Use Case | Key Advantage | Key Limitation |
|---|---|---|---|---|
Active Af Testing (Bend and Free Recovery) | ASTM F2082 | Finished manufactured components | Measures true functional performance | Destructive and highly component-specific |
Differential Scanning Calorimetry (DSC) | ASTM F2004 | Raw ingots, wire, and tubing | Highly precise thermodynamic data | Does not reflect final processed geometry |
The Bend and Free Recovery test measures the physical shape change of a component. You chill the sample below its Martensite Finish temperature using a controlled fluid bath. You physically deform the sample around a specified mandrel to induce a known amount of strain. You place the deformed sample into the temperature-controlled fluid bath. A Linear Variable Differential Transformer (LVDT) contacts the sample. The bath slowly heats up at a controlled rate. The LVDT measures the exact physical recovery of the sample as it transitions back to austenite.
This method provides the most accurate representation of real-world component performance. It tests the actual manufactured geometry. It accounts for all prior cold working and heat treatments. However, the test is destructive. You cannot use the tested component in a final assembly. It is also highly component-specific. A test fixture designed to measure a delicate neurovascular stent cannot test a solid aerospace actuator pin. You must design custom fixtures for every unique part.
Differential Scanning Calorimetry (DSC) measures the thermal behavior of Nitinol. A small sample, typically 10–30 mg, is cooled and heated at a controlled rate while the machine measures heat flow during phase transformation.
The resulting thermogram identifies key transformation temperatures, including As, Af, Ms, and Mf. Because of its high precision, DSC is widely used to inspect raw ingots, wire, and tubing before machining.
However, DSC may not fully represent the behavior of a heavily processed final component. Cutting a small sample can alter its residual stress state, meaning the measured thermal data may differ from the actual recovery behavior of the finished part.
Thermal actuators convert temperature changes into mechanical motion, offering a compact alternative to motors, solenoids, or wax motors. Their operation relies on the shape memory effect of Nitinol. At low temperatures, the martensite can be deformed. When heated above its transition temperature, it transforms into austenite and returns to its original shape, generating enough force to operate valves, release aerospace latches, or deploy structural panels.
Hysteresis also affects actuator performance. A narrow hysteresis range enables faster heating and cooling cycles, making it suitable for high-frequency valves. A wider range provides greater temperature stability and helps prevent accidental activation. Engineers can adjust alloy composition and heat treatment to achieve the required response and cycle time.
Alloy composition dictates the baseline thermal properties. The material is incredibly sensitive to the Nickel-to-Titanium atomic ratio. Even a 0.1% shift in this ratio can shift the transition temperature by up to 10°C. A slight inconsistency during the initial vacuum melting process ruins the entire ingot.
Cold working further complicates the manufacturing process. Drawing wire through diamond dies, rolling sheet metal, or expanding tubing introduces massive amounts of dislocations into the crystal lattice. These dislocations physically impede the movement of phase boundaries. This suppression lowers the transition threshold. Heavy cold working can suppress the threshold so far that the material loses its shape memory properties entirely. You must apply intermediate annealing steps to relieve these stresses and recover the material properties.
Mitigating these risks requires strict supply chain control. You must enforce tight raw material procurement tolerances. Demand strict DSC certifications for all incoming material lots. You must also execute iterative prototyping. Lock in the exact sequence of cold working and heat treatment steps before scaling to production. Any deviation in the manufacturing sequence will shift the final thermal properties.
The nitinol Af temperature serves as the foundational specification for shape-memory engineering. It determines whether a component functions as a superelastic spring or a thermal actuator within its specific operating environment. Misunderstanding this metric guarantees component failure. Mastering it ensures reliable, repeatable mechanical performance.
Engineers must evaluate suppliers based on holistic manufacturing capabilities. Shortlist manufacturing partners based on their ability to control the Active Af in the final component. Do not select suppliers solely based on their ability to source raw ingots with a specific DSC rating. Final processing dictates final performance.
Take the following actions to secure your component design:
Initiate a rigorous prototyping phase to map the exact thermal shifts caused by your specific shape-setting process.
Implement ASTM F2082 bend and free recovery testing on all finished component geometries to verify functional performance.
Execute application-specific mechanical fatigue testing to validate that the chosen thermal specification delivers the required lifecycle durability.
Establish a strict traceability matrix linking raw material DSC data to final component Active Af data.
A: It remains in a mixed or fully martensitic state. In this state, the material lacks superelasticity. It deforms easily under load and will not spring back to its original shape until you apply external heat to push it past the transition threshold.
A: It depends entirely on the Martensite Finish (Mf) temperature. For medical devices with an Af near room temperature, the material often must be chilled to sub-zero temperatures, such as -10°C. This chilling makes the material fully pliable for processes like crimping.
A: Yes, through additional proprietary heat treatments and shape-setting training. However, altering the thermal threshold after initial manufacturing will also alter other critical mechanical properties. It changes the tensile strength, plateau stress, and fatigue resistance of the component.
A: Austenite Start (As) marks the exact temperature where the crystallographic transformation begins upon heating. Austenite Finish (Af) marks the exact temperature where that transformation is 100% complete, yielding a fully rigid, superelastic structure.
A: To ensure the stent remains fully austenitic and superelastic at a human body temperature of 37°C. The 15°C specification provides a wide safety margin against cold saline injections. This guarantees maximum outward radial force and prevents the stent from collapsing.
