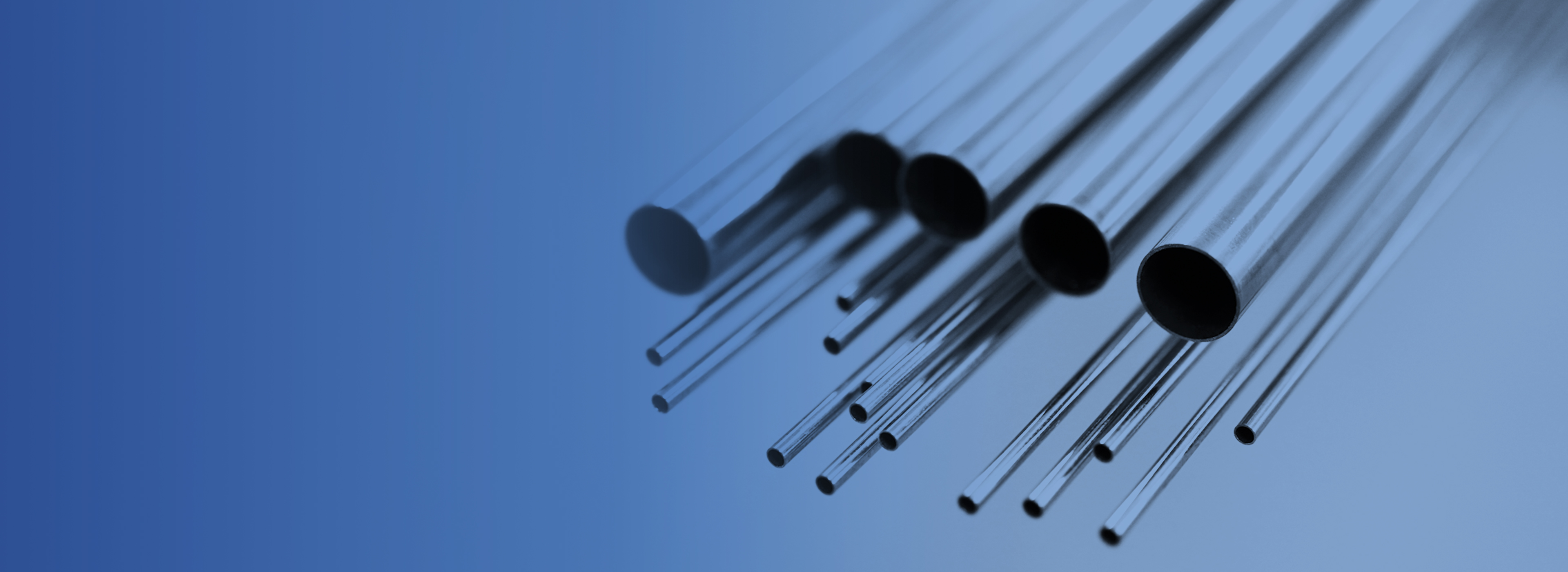

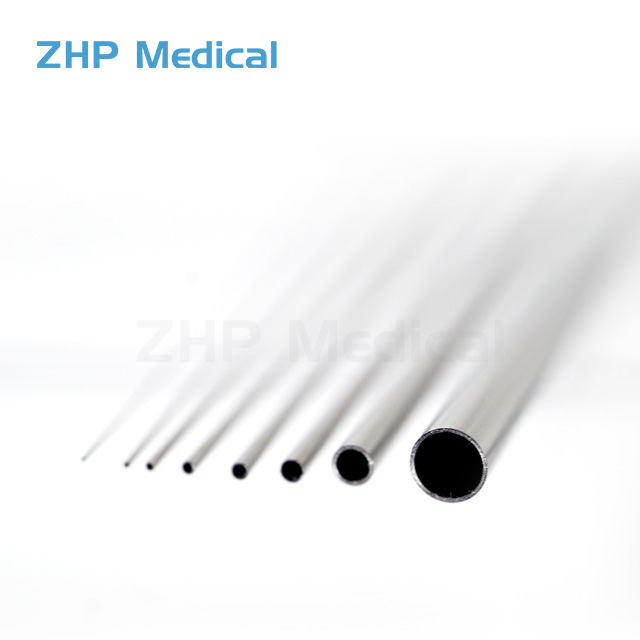

Nitinol Tube
Explore our high-performance Nitinol tubing portfolio, featuring custom-tailored grades optimized for stringent precision and device performance.
Nitinol Tube
The finalized tube’s austenite completion temperature Af must be determined by the bend and unrestrained recovery procedure. This measurement applies to representative, full-diameter tube specimens with outer dimensions spanning 0.1mm to 10.0mm (0.004" to 0.4"). All testing must adhere to the requirements specified in Test Method ASTM F 2082-15.
| Condition | UTS MPa | Elongation % | UPS MPa | Permanent set after 6% strain % | Active Af ℃ | Condition |
| Superelastic | ≥1000 | ≥10 | ≥380 | ＜0.3 | ≤15 | Superelastic |
| OD | OD Tolerances | ID Tolerances |
| OD≤0.3mm | ±0.005mm | ±0.010mm |
| 0.3mm＜OD≤1.5mm | ±0.010mm | ±0.010mm |
| 1.5mm＜OD≤2.5mm | ±0.010mm | ±0.020mm |
| 2.5mm＜OD≤3.5mm | ±0.020mm | ±0.020mm |
| 3.5mm＜OD≤10.0mm | ±0.020mm | ±0.020mm |
| 10.0mm＜OD | ±0.030mm | ±0.030mm |
| OD | OD Tolerances | ID Tolerances |
| 0.3mm＜OD≤0.6mm | ±0.010mm | ±0.010mm |
| 0.6mm＜OD≤1.5mm | ±0.013mm | ±0.013mm |
| 1.5mm＜OD≤2.5mm | ±0.015mm | ±0.015mm |
| 2.5mm＜OD≤3.5mm | ±0.015mm | ±0.015mm |
| 3.5mm＜OD≤5.0mm | ±0.020mm | ±0.025mm |
| 5.0mm＜OD≤8.0mm | ±0.020mm | ±0.025mm |
| 8.0mm＜OD | ±0.030mm | ±0.030mm |
