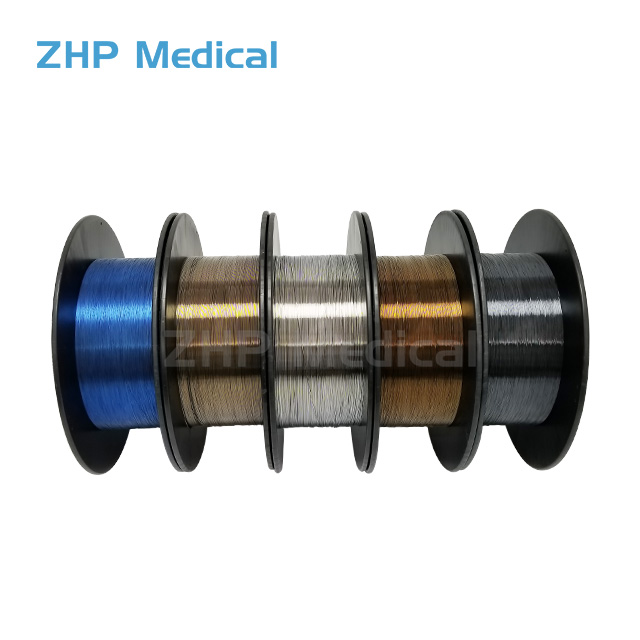

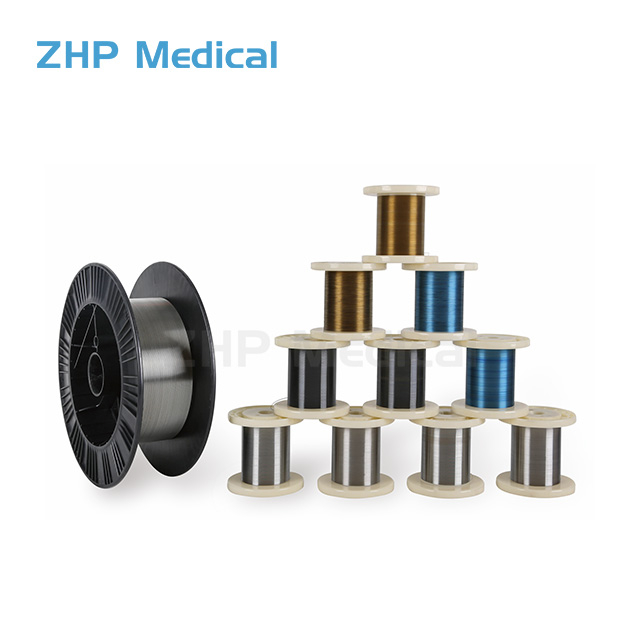

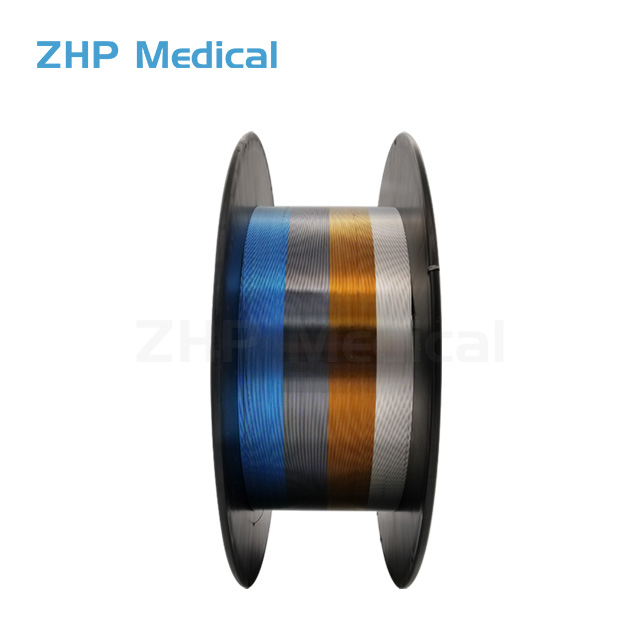

High-Tolerance Medical Nitinol Round Wire


Availability:

Quantity:

Inquire Add to Basket

· Our nitinol material products include nitinol wires, nitinol tubing, nitinol
ropes and shapeset nitinol components.
· Chemical composition: Per ASTM F2063 or GB24627
· Af temperature range:-40°C~85°C

Medical Nitinol Round Wire High-Tolerance Nitinol Round Wire Nitinol Wire

Product Description

· Diameter Range: φ0.013-φ4.00mm

· Surface State Options:

Black Oxide/ Light Oxide (Amber)

Cleaned

Gloss^TM

Ground

· Shape: Round, Square, Triangle, Flat, Rope

· Dimensional tolerances: according to the finished diameter range

Diameter	Tolerance
2.000mm≤D≤4.00mm	±0.020mm
1.500mm＜D＜2.00mm	±0.010mm
1.000mm＜D≤1.50mm	±0.010mm
0.350mm＜D≤1.00mm	±0.007mm
0.260mm＜D≤0.35mm	±0.007mm
0.150mm＜D≤0.26mm	±0.005mm
0.080mm＜D≤0.15mm	±0.004mm
0.050mm＜D≤0.08mm	±0.003mm
0.013mm≤D≤0.05mm	±0.002mm
