Nitinol Actuating Wire
Achieving exceptional kinematic performance through actuation driven solely by specialized material properties.

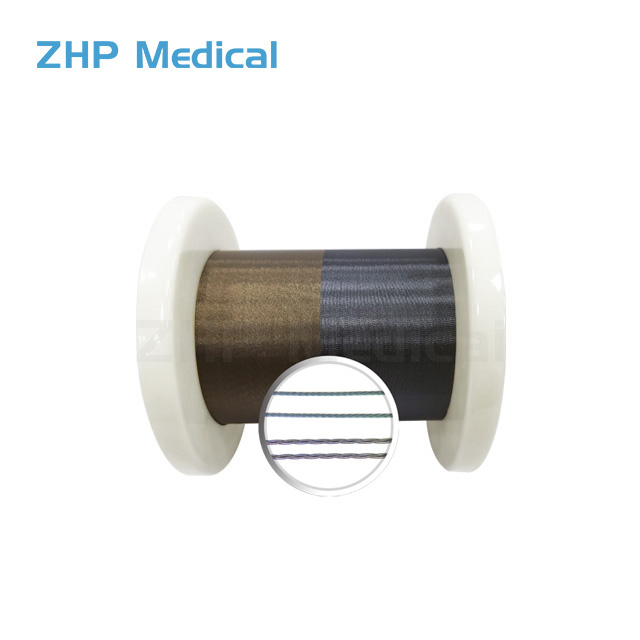

Nitinol Actuating Wire

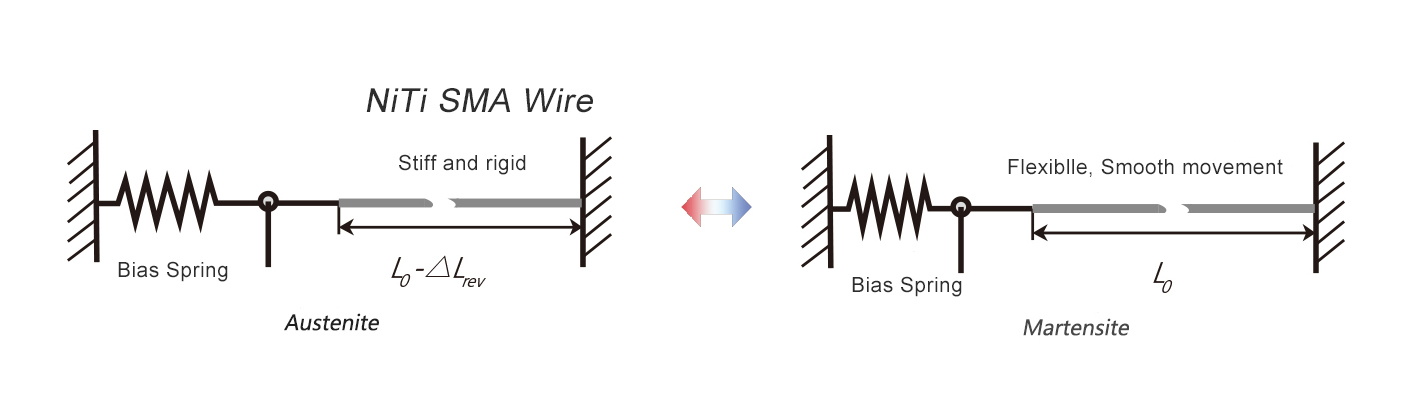

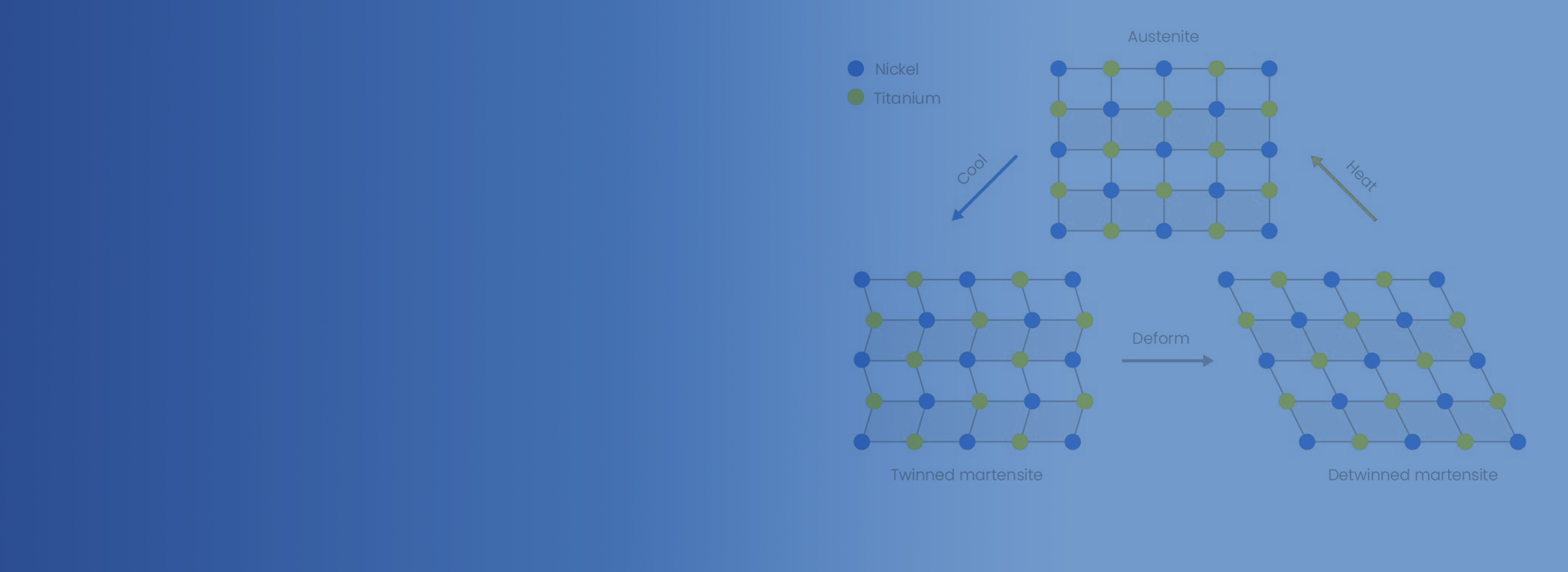

The wire is thermally activated via electrical heating when the material temperature exceeds its phase transition point. Upon cooling, the material can be precisely elongated to its initial dimension, preparing it for the next actuation cycle.
These wires offer distinct operational benefits: They feature a compact profile, minimal mass, simplified integration, and near-silent mechanical function.
| Diameter（mm） | Tolerances (mm) | ApproximateShrinkage % | Load Force (N) | Resistance (Ω/M) | Recommended Current by Electrifying for 1sunit (mA) |
| 0.025mm | ±0.002mm | 2%-5% | 0.07 | 2037.18 | 45 |
| 0.050mm | ±0.002mm | 2%-5% | 0.29 | 509.30 | 85 |
| 0.100mm | ±0.004mm | 2%-5% | 1.18 | 127.32 | 200 |
| 0.150mm | ±0.004mm | 2%-5% | 2.65 | 56.59 | 410 |
| 0.180mm | ±0.004mm | 2%-5% | 3.82 | 39.30 | 556 |
| 0.200mm | ±0.005mm | 2%-5% | 4.71 | 31.83 | 660 |
| 0.250mm | ±0.005mm | 2%-5% | 7.36 | 20.37 | 1050 |
| 0.300mm | ±0.007mm | 2%-5% | 10.6 | 14.00 | 1435 |
| 0.400mm | ±0.010mm | 2%-5% | 18.84 | 8.00 | 2490 |
| 0.500mm | ±0.010mm | 2%-5% | 29.44 | 5.10 | 3845 |
