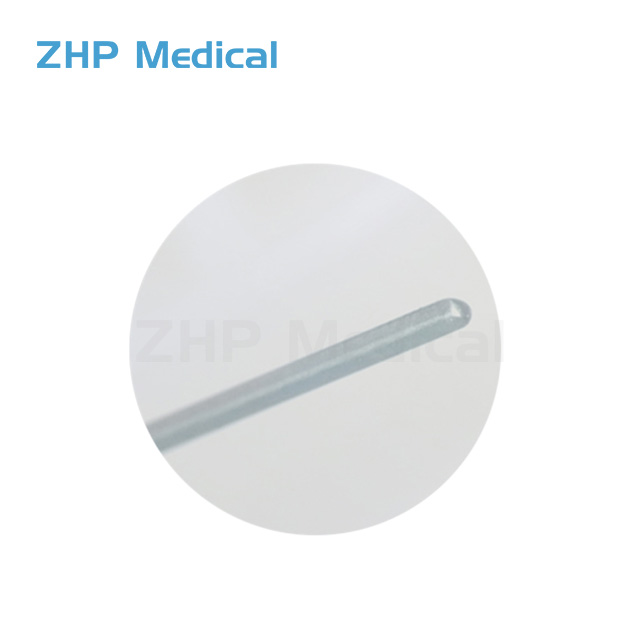

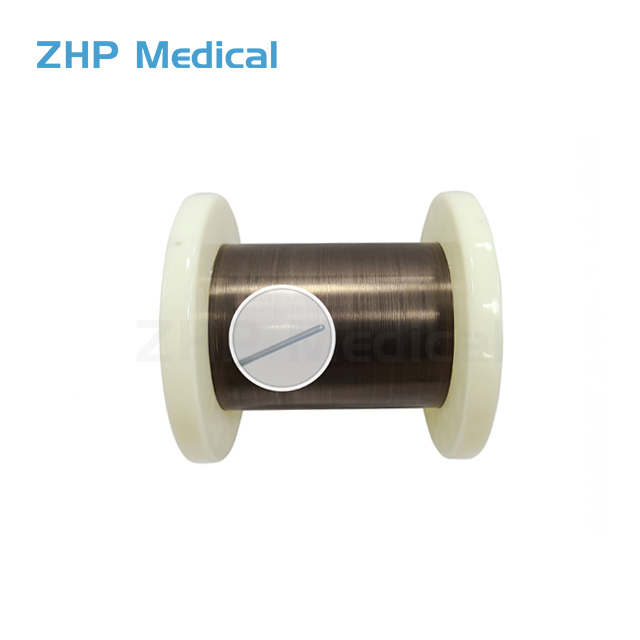

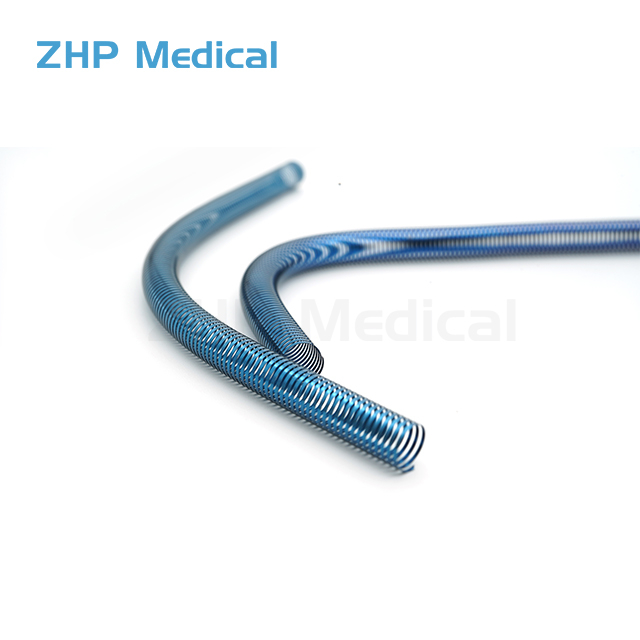

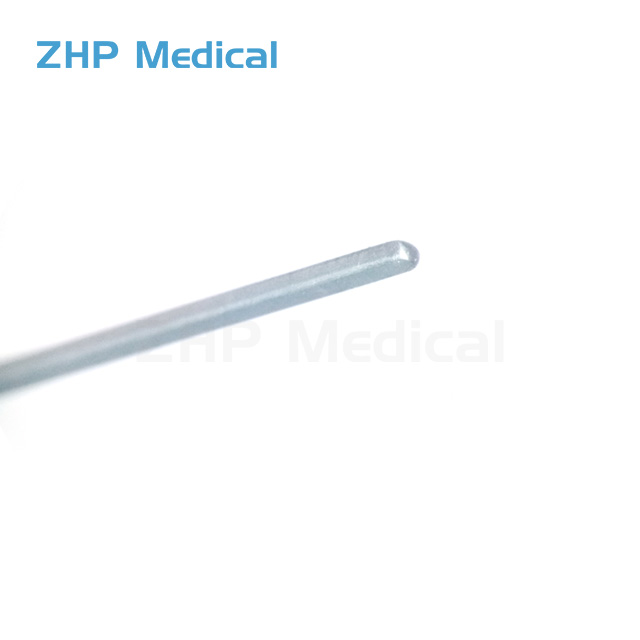

Nitinol Flat Wire for braiding, coils, and dental applications
Dimension and tolerance of the thickness of the flat wire
(γ: Width-thickness ratio T: Thickness)
Width-thickness ratio γ | Thicknes | Thickness |
2<γ ≤ 10 | 0.013≤T≤0.05m | ±0.005m |
0.050≤T≤0.80mm | ±0.1T (10%) mm |
Dimension and tolerance of the width of the flat wire
(γ: Width-thickness ratio W: Width)
Width-thickness ratio γ | Widt | Width |
2<γ ≤ 10 | 0.100≤W≤2.5m | ±0.1W (10%) mm |
0.045≤W≤0.10mm | ±0.1W (10%) mm |
