Nitinol Stone Retrieval Basket

Nitinol Stone Basket contract manufacturing per customer design.

Product Description

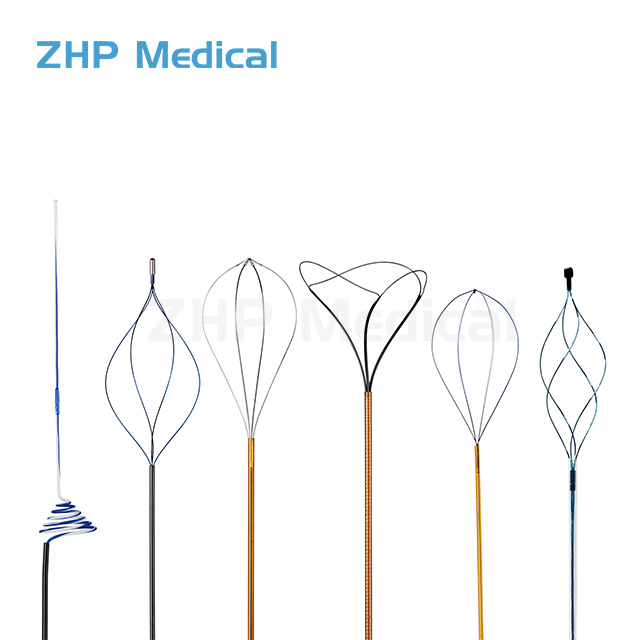

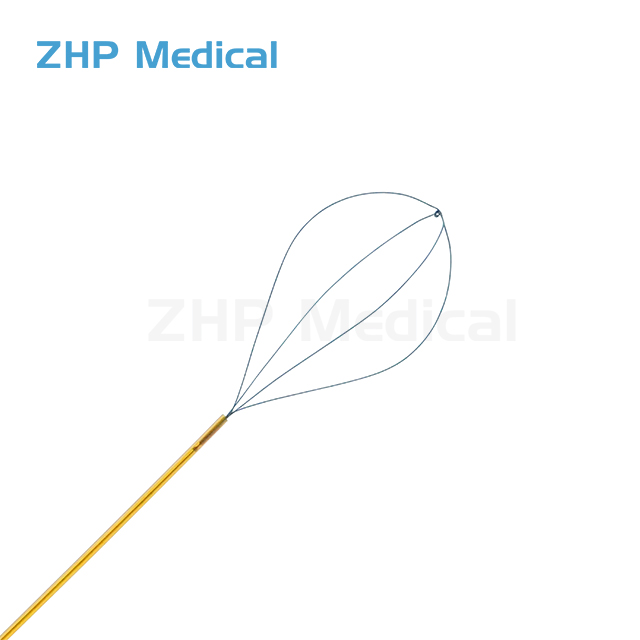

Nitinol Stone Retrieval Basket

· Tipped or tipless baskets are available

· Nitinol Materials: highly durable and maintain shape and form

· Stable Support: good kink-resistance and excellent supporting performance

· Excellent Flexibility, quickly and easily access target

· Reduced tissue trauma during operation in confined spaces

Standard Specifications:

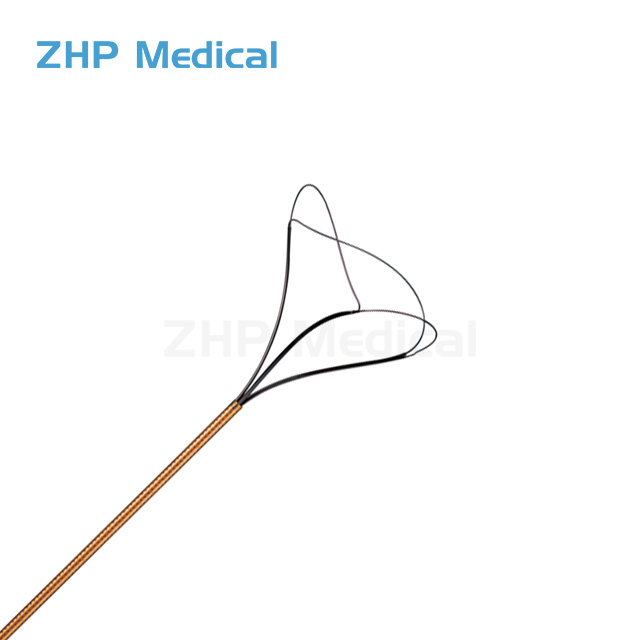

Model			Length	Basket Width	Open Length	Sheath	Handle
3-Wire	1.7F		1200mm	8/11±1mm	8/11±1mm	Braided Tube （Amber）	With/ Without
	1.9F		1200mm	8/11±1mm	8/11±1mm
	2.2F		1200mm	8/11±1mm	8/11±1mm

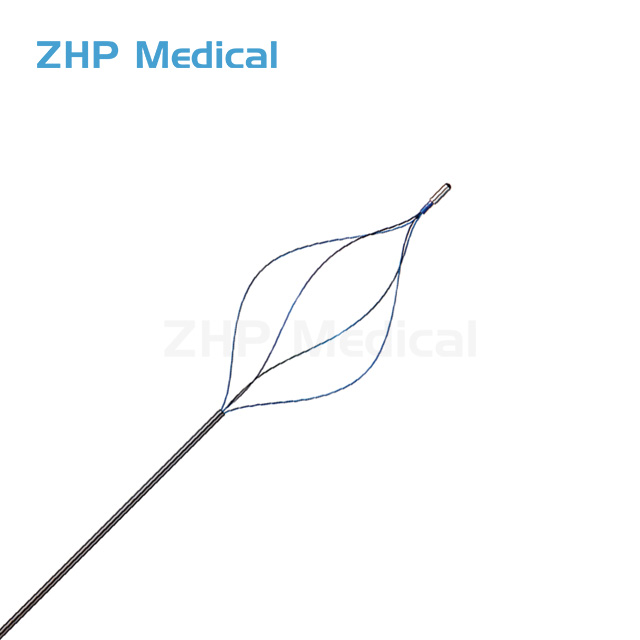

4-Wire	Tipless 1.9F		1200mm	10±1mm	18.5±1.5mm	PI Tube （Amber）	With/ Without
	Tipless 2.1F		1200mm	10±1mm	18.5±1.5mm

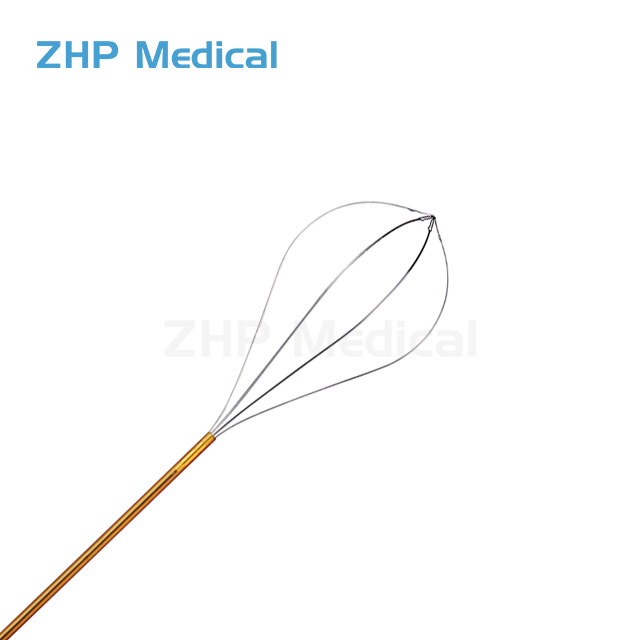

	Braided 1.9F		1200mm	11±2mm	20±2mm
	Braided 2.1F		1200mm	12.5±2mm	21±2mm
	Metal Head 2.5F		900mm	15±1mm	33±2mm	Peek Tube （Black）	With/ Without
			1200mm

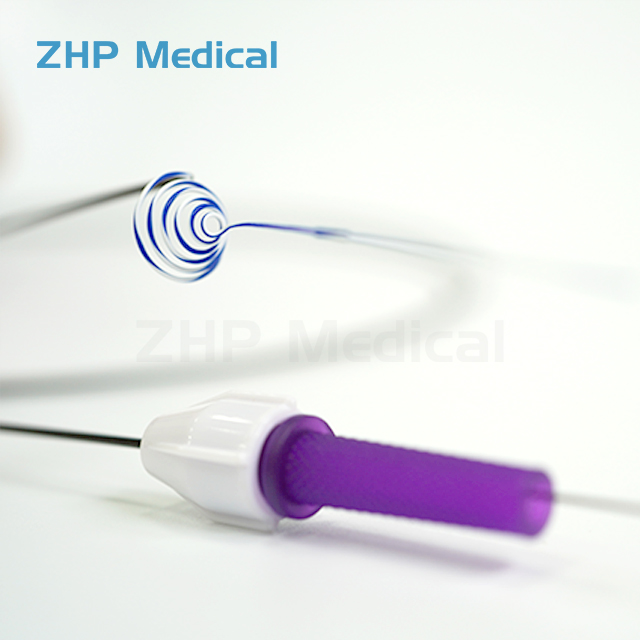

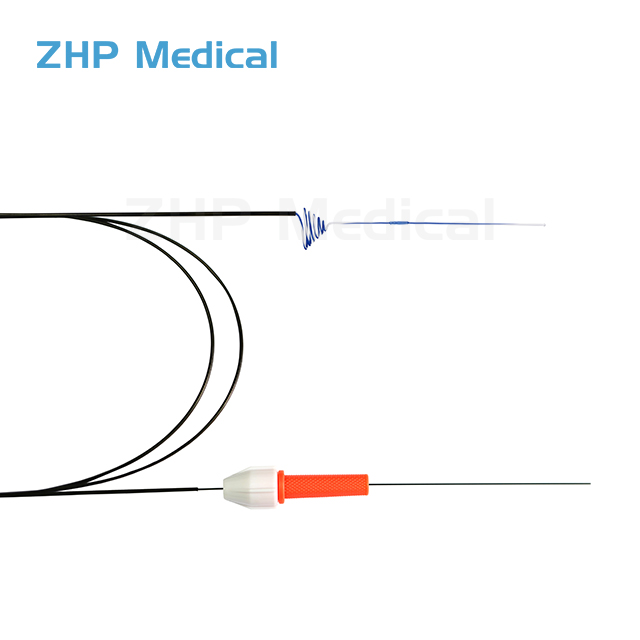

Retieval Coil	3F		1200mm	-	10mm	Peek Tube （Black）	With/ Without

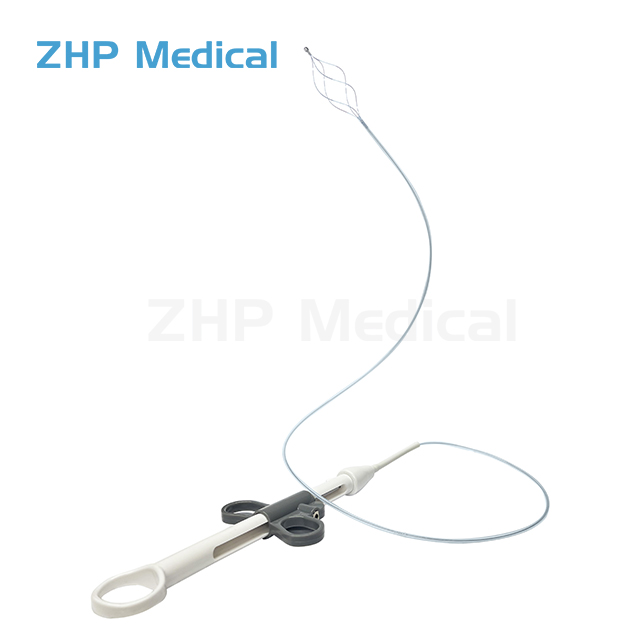

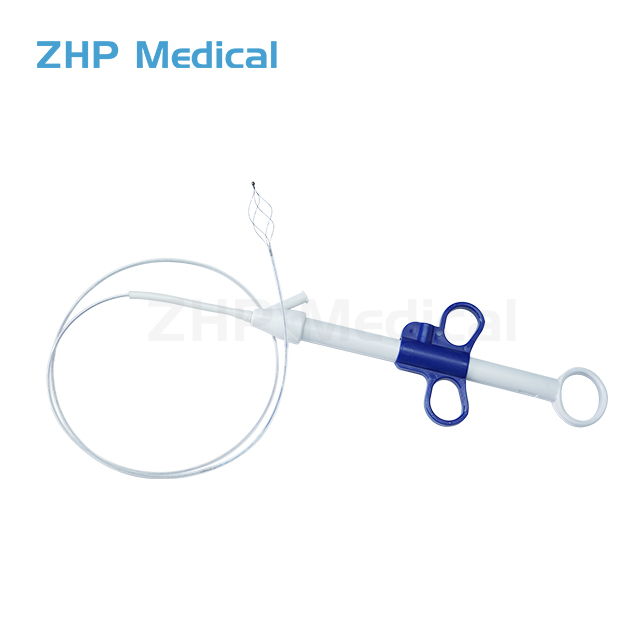

Biliary Basket	Spiral Shape Zero Tip 4-Wire Metal Head Diamond Shape	5F	700mm	15mm	30mm	-	With/ Without
				20mm	40mm
		7F	2000mm	20mm	40mm
				25mm	50mm
				30mm	60mm
