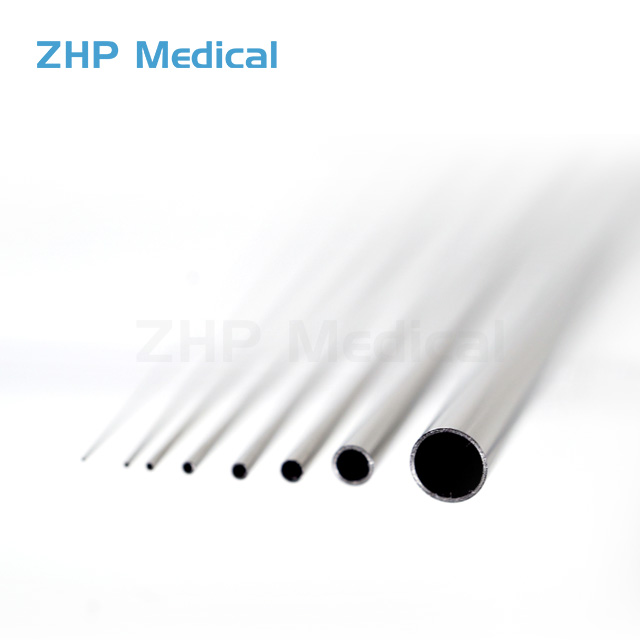

The rapid advancement of minimally invasive surgery relies heavily on materials capable of surviving extreme deformation and high-fatigue environments without mechanical failure. When engineers design next-generation catheters or self-expanding stents, they face strict material constraints. Specifying the wrong alloy composition, surface finish, or dimensional tolerance for medical tubing can lead to catastrophic device failure, regulatory rejection, or severe manufacturing bottlenecks. Evaluating medical grade nitinol tubing requires a rigorous understanding of its unique thermomechanical properties, specific application use cases, and the strict compliance standards governing its use in Class II and Class III medical devices. You must account for the exact phase transformation temperatures required for the device to function inside the human body. Furthermore, understanding the metallurgical differences between standard and high-purity melts dictates the long-term survival of permanent implants subjected to continuous pulsatile stress.
Material Uniqueness: Nitinol’s superelasticity and shape memory characteristics make it a non-negotiable requirement for self-expanding cardiovascular implants and highly flexible delivery systems.
Purity Dictates Performance: The choice between standard and high-purity nitinol directly impacts fatigue life, serving as a critical decision point for permanent, high-cycle implants like heart valves.
Processing Realities: Surface finish and dimensional tolerances (especially concentricity) dictate the success of downstream processing, such as laser cutting for small feature components and shape setting.
Sourcing Strategy: Selecting a manufacturing partner requires evaluating end-to-end capabilities, from raw ingot traceability (ASTM F2063 compliance) to secondary operations, joining capabilities, and regulatory documentation.
Table of Contents
Medical nitinol features a near-equiatomic composition. It contains approximately 50.8% atomic nickel, with titanium making up the remaining balance. This specific ratio drives the unique mechanical behavior of the alloy. Even microscopic variations in the nickel-to-titanium ratio alter the material properties drastically. A shift of just 0.1% in the nickel content changes the phase transformation temperature by approximately 10°C. Manufacturers must control the melt chemistry with extreme precision to ensure the final tubing behaves predictably inside the human body.
Solid-state phase transformations remain critical to the alloy's function. Nitinol exists in two primary crystal structures depending on temperature and stress. Austenite is the high-temperature phase. It features a rigid, highly ordered B2 cubic crystal structure. Martensite is the low-temperature phase, possessing a B19' monoclinic crystal structure. The martensitic phase is highly deformable and accommodates significant strain through a process called twinning. The material transitions between these two phases based on thermal changes or applied mechanical stress. This reversible, solid-state transformation separates nitinol from conventional medical metals like stainless steel or cobalt-chrome, which rely entirely on standard elastic deformation.
Superelasticity relies entirely on stress-induced martensite. You apply mechanical stress to the tubing while it remains in the austenitic phase at body temperature. The mechanical load forces the crystal lattice to transform into martensite temporarily. This phase shift allows the tubing to undergo up to 8% recoverable strain without permanent plastic deformation. Once you remove the stress, the material becomes thermodynamically unstable as martensite, reverts to austenite, and snaps back to its original shape immediately. This property proves essential for devices requiring extreme flexibility, such as guidewires navigating tortuous anatomy.
The thermal shape memory effect operates on a different trigger. You deform the material while it rests in the low-temperature martensitic phase. The device holds this compressed or altered shape as long as it remains cool. You then introduce the device into the human body. The body heat raises the material temperature above its transformation threshold. The tubing reverts to its rigid austenitic structure and expands to a predetermined shape upon reaching 37°C. Engineers use this property to design self-expanding stents that compress into low-profile delivery catheters and deploy automatically upon release.
Comparison of Nitinol Thermomechanical Properties | |||
Property | Trigger Mechanism | Phase Shift Sequence | Primary Medical Application |
|---|---|---|---|
Superelasticity | Mechanical Stress | Austenite → Stress-Induced Martensite → Austenite | Guidewires, flexible catheter shafts, orthodontic archwires. |
Shape Memory | Thermal Energy (Heat) | Deformed Martensite → Austenite | Self-expanding stents, bone staples, clot retrievers. |
Inclusion sizes and distribution differ greatly between standard and high-purity melts. During the initial melting process, titanium reacts readily with carbon and oxygen. This reaction forms titanium carbides (TiC) and intermetallic oxide inclusions (Ti4Ni2Ox). Standard nitinol melts, often produced via single or double Vacuum Arc Remelting (VAR), contain larger, more frequent inclusions. These inclusions typically measure up to 39 microns. They do not pose a problem for static applications or low-cycle devices like surgical tools. However, they create severe stress concentrations under continuous dynamic loading.
High-purity nitinol undergoes specialized melting processes, combining Vacuum Induction Melting (VIM) with multiple VAR steps. These processes drive down oxygen and carbon levels, minimizing inclusion size and distribution strictly. High-purity nitinol is strictly specified for high-fatigue applications. Transcatheter heart valve frames require this high-purity material. The human heart beats approximately 40 million times a year. A permanent implant must survive hundreds of millions of cycles over its lifespan. High-purity melts mitigate micro-crack initiation and propagation at the inclusion sites. They ensure the device survives its intended lifecycle without catastrophic structural failure.

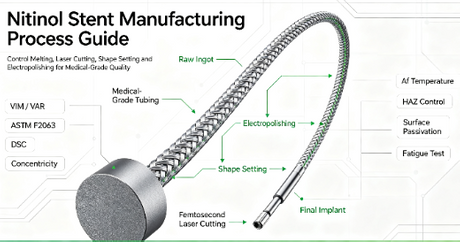

Engineers use nitinol tubing extensively in self-expanding peripheral and neurovascular stents. These devices require precise, continuous radial force to keep diseased vessels open. The manufacturing process begins with laser cutting a specific geometric pattern into the tubing. The stent is then expanded over a series of progressively larger mandrels and heat-set in a fluidized barium salt bath. During the procedure, the stent compresses into a low-profile delivery catheter. The physician navigates the catheter to the target lesion. Upon deployment, the stent expands outward, applying steady outward pressure against the vessel wall to restore normal blood flow.

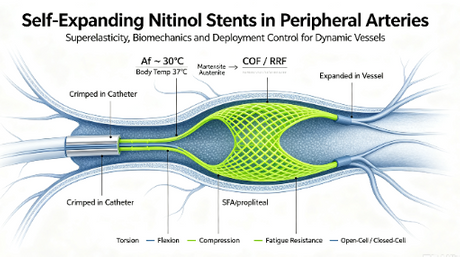

High fatigue resistance ensures device longevity. The vascular system subjects implants to continuous pulsatile stress. Arteries expand and contract with every heartbeat. Peripheral arteries, such as the superficial femoral artery (SFA), also experience severe bending, twisting, and axial compression from musculoskeletal movement during walking. High-purity tubing withstands this complex biomechanical loading. This proves particularly critical for small feature components. Laser-cut stent struts often measure less than 100 microns in width. Any material flaw or oversized inclusion at this scale leads to rapid strut fracture and subsequent vessel re-occlusion.
Kink resistance and extreme flexibility are absolute necessities for modern catheter design. Physicians navigate delivery catheters through highly tortuous vascular pathways, such as the internal carotid artery. Traditional polymer or stainless steel hypotubes often kink when bent around tight radii, effectively ruining the device and halting the procedure. Nitinol tubing bends significantly without kinking or collapsing. It maintains an open inner lumen for device passage, contrast injection, or fluid delivery even when navigating 180-degree turns in the vasculature.
Ultra-fine capillary tubing plays a massive role in neurovascular applications. Spatial constraints in the brain are severe, with target blood vessels narrowing down to millimeters in diameter. Engineers design micro-catheters using ultra-thin wall nitinol tubing to reach these distal locations. These micro-tubes deliver embolic coils or flow diverters deep into the neurovasculature safely.
Nitinol tubing offers exceptional torque transmission capabilities. When physicians rotate the proximal end of the catheter outside the patient, they expect the distal tip inside the body to rotate exactly the same amount. Nitinol provides 1:1 maneuverability during minimally invasive procedures. This precise control allows physicians to steer devices into complex anatomical branches accurately without the catheter whipping or storing rotational energy.
Grinding applications create variable stiffness profiles in superelastic guidewires and delivery systems. Manufacturers take solid nitinol wire or thick-walled tubing and process it through centerless grinding machines. They grind the outer diameter to create specific tapers and steps. The proximal end remains thick and stiff to provide pushability from outside the body. The distal tip becomes ultra-thin and floppy, preventing vessel trauma during navigation. Delivery systems utilize similar ground tubing profiles to optimize flexibility transitions between the rigid handle and the flexible distal tip.
Orthopedic applications utilize the constant force delivery of shape memory nitinol. Bone staples and spinal implants represent common examples. Surgeons insert the staple across a bone fracture while the material is in its martensitic state. As body heat activates the shape memory effect, the staple attempts to close to its original programmed shape. It cannot close completely due to the presence of the bone. Instead, it applies continuous, dynamic compression across the fracture site. This constant tissue or bone compression accelerates healing, improves fusion rates, and prevents the hardware from loosening over time.
Wall thickness variation impacts laser-cutting precision directly. Laser cutting systems focus thermal energy precisely on the tube surface. If the wall thickness varies around the circumference of the tube, the laser parameters become unstable. The laser may not penetrate cleanly through thick sections, leaving dross or uncut material. Conversely, it might over-penetrate thin sections and damage the opposite inner wall of the tube. Wall thickness variation also affects the structural integrity of the final device. Thin spots in the tubing become weak points in a laser-cut stent strut, failing early under fatigue loading.
You must specify inner diameter (ID) and outer diameter (OD) tolerances carefully. Baseline expectations for medical tubing often require tolerances of +/- 0.0005 inches to +/- 0.001 inches, depending on the nominal size. Strict tolerances ensure seamless integration with mating components. Catheters often require multiple layers of tubing, braiding, and polymer jackets. The nitinol tube must fit perfectly within this assembly stack-up. Poor concentricity causes uneven radial force and unpredictable device deployment.
Incoming inspection for dimensional accuracy requires specific protocols:
Measure the outer diameter continuously using a multi-axis laser micrometer to detect ovality.
Verify the inner diameter using precision class-X pin gauges to ensure lumen patency.
Calculate concentricity by taking cross-sectional measurements of the wall thickness at 90-degree intervals under an optical comparator.

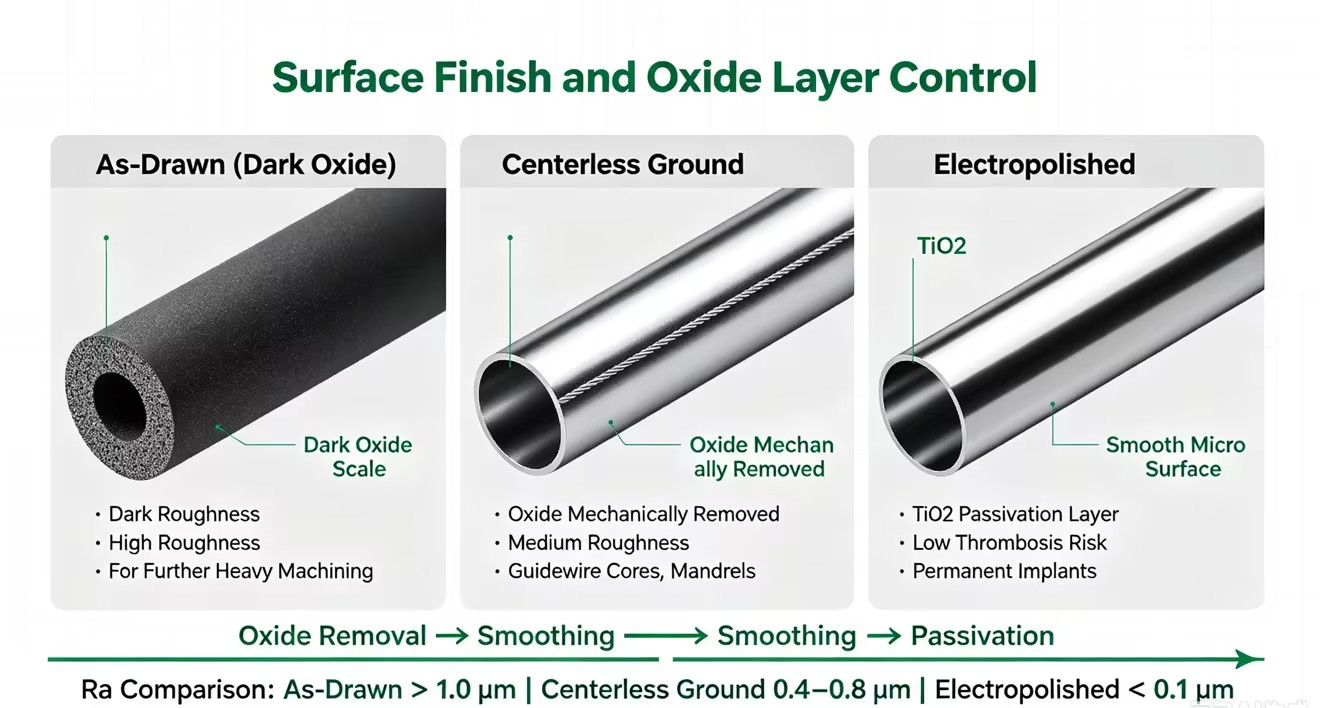

Medical tubing comes in several common surface conditions, each suited for different downstream processes. As-drawn tubing features a dark, heavy oxide layer. This layer forms naturally during high-temperature drawing and annealing steps in the mill. Centerless ground tubing removes this oxide layer mechanically, leaving a bright, textured surface with visible grind lines. Electropolished finishes provide the smoothest possible surface. The process removes material electrochemically in a methanolic sulfuric acid bath, smoothing out microscopic peaks and valleys.
Surface condition directly affects biocompatibility and corrosion resistance. The dark oxide layer is generally unacceptable for permanent implants because it can flake off or harbor contaminants. Electropolishing creates a uniform, highly corrosion-resistant titanium dioxide (TiO2) layer, typically 200 to 500 Angstroms thick. This smooth surface prevents blood pooling and reduces thrombosis risk. A pristine surface finish also extends the fatigue life of the final medical component by eliminating microscopic surface scratches that serve as crack initiation sites.
Comparison of Nitinol Tubing Surface Finishes | |||
Surface Finish | Visual Appearance | Surface Roughness (Ra) | Primary Medical Use Case |
|---|---|---|---|
As-Drawn (Dark Oxide) | Dark grey/black | High (> 1.0 µm) | Raw material for further heavy machining; non-implant tools. |
Centerless Ground | Bright metallic, visible grind lines | Medium (0.4 - 0.8 µm) | Guidewire cores, mandrels, components requiring adhesives. |
Electropolished | Mirror-like, highly reflective | Very Low (< 0.1 µm) | Permanent cardiovascular implants, stents, heart valve frames. |
Specifying the Austenite Finish (Af) temperature is essential for Nitinol components because it determines when the material fully transforms into its austenitic phase. For superelastic medical devices, Af is typically set below body temperature, often between 15°C and 30°C, to ensure reliable performance at 37°C. DSC testing measures phase transformation temperatures, while bend-and-free-recovery testing verifies functional shape recovery. Tensile testing is also important for evaluating tensile strength, elongation, and plateau stresses, which directly influence the device’s radial force and structural performance.
Nitinol is difficult to machine because of its rapid work hardening and high elasticity, which can cause tool wear, poor dimensional accuracy, and tool breakage. For small medical components, laser cutting and EDM are commonly used because they avoid traditional cutting forces. However, laser cutting can create a heat-affected zone (HAZ) that alters local material properties. Femtosecond lasers help minimize this thermal damage, while electropolishing can remove affected surface material after conventional laser cutting. Precise fixturing and controlled heat treatment are also essential during shape setting to maintain consistent material performance.
Welding medical grade nitinol tubing to dissimilar metals presents severe metallurgical difficulties. You cannot easily weld nitinol to stainless steel or titanium using standard TIG or laser welding. The high heat of welding mixes the metals, forming brittle intermetallic compounds (like TiFe2) in the weld pool. The joint becomes highly susceptible to fatigue failure and cracking under minimal stress. Direct fusion welding is generally avoided for high-stress joints in medical devices.
Engineers evaluate alternative assembly methods to overcome this limitation. Mechanical crimping offers a reliable, cold-joining method.
Select a radiopaque marker band made of platinum-iridium or tantalum.
Position the band over the joint where the nitinol tube meets the mating component.
Apply uniform radial compression using a specialized swaging tool to lock the components together mechanically.
Specialized laser welding techniques use intermediate materials. You can weld nitinol to a tantalum intermediate layer, and then weld the tantalum to stainless steel, preventing the brittle intermetallics from forming. Medical-grade adhesives provide another viable option for catheter assemblies. UV-cured epoxies bond nitinol to polymer catheter shafts effectively, provided the nitinol surface is properly roughened or primed.
Nickel release is an important safety consideration because Nitinol contains a high percentage of nickel. Proper passivation and surface treatment create a protective titanium dioxide (TiO₂) layer that helps limit nickel release and improve biocompatibility. Compliance with ASTM F2063 is also critical for medical-grade Nitinol, as it defines requirements for chemical composition, inclusions, and mechanical properties. Documented material testing and certification are therefore essential for supporting regulatory submissions and long-term device safety.
Nitinol is significantly more expensive than standard 304V stainless steel due to its raw material cost and specialized processing. However, its superelasticity and kink resistance are essential for critical medical devices, where failure can result in far greater clinical and financial consequences. During development, off-the-shelf tubing is often used for faster prototyping, while custom tubing offers precise wall thickness and Af temperature control for final production. Although custom runs involve longer lead times and higher minimum orders, they provide the consistency required for demanding clinical applications.
Establish ISO 13485 certification as your baseline requirement. This certification proves the vendor maintains a comprehensive quality management system specific to medical device manufacturing. Do not partner with vendors lacking this certification. Medical device manufacturing requires strict document control, risk management, and process validation. An ISO 13485 certified vendor ensures that every step of the tubing production is controlled, documented, and repeatable.
Full ingot-to-tube traceability is paramount. You must trace every piece of tubing back to its original raw material melt. Different ingots exhibit slight variations in chemistry, even within the ASTM F2063 specification. These variations affect the final mechanical and thermal properties. Traceability ensures lot-to-lot consistency. If a field failure occurs, traceability allows you to identify the specific ingot, isolate the root cause, and quarantine affected lots immediately to prevent further patient risk.
Evaluate the supply chain risk reduction of partnering with integrated vendors. Look for partners who offer in-house secondary operations. Sending raw tubing to one vendor for laser cutting, another for shape setting, and a third for electropolishing creates massive logistical risks. It also complicates quality accountability if a defect is found at the end of the line. Integrated vendors handle laser cutting, shape setting, electropolishing, and centerless grinding under one roof, ensuring tighter quality control and faster turnaround times.
Assess vendor capabilities in handling ultra-fine capillary tubing. Next-generation miniature devices require microscopic precision. Ask prospective vendors about their minimum achievable wall thicknesses and their inspection methods for micro-tubing. Inquire about their micro-machining tolerances and their experience with femtosecond laser cutting. Vendors capable of handling ultra-fine dimensions will support your future product development roadmaps effectively as devices continue to miniaturize.
Request comprehensive material data sheets from prospective suppliers to verify ASTM F2063 compliance and review inclusion size distributions.
Order prototype lengths of off-the-shelf standard tubing to accelerate initial feasibility testing and validate catheter delivery concepts.
Consult directly with a specialized metallurgist to define custom drawn requirements, exact wall thicknesses, and specific Af temperatures for production runs.
Audit vendor facilities to confirm ISO 13485 compliance, end-to-end ingot traceability, and in-house secondary operation capabilities.
Require documented process validations (IQ/OQ/PQ) for all secondary operations, specifically focusing on laser cutting and electropolishing parameters.
A: Standard nitinol contains larger, more frequent non-metallic inclusions formed during melting. High purity nitinol undergoes specialized vacuum melting to minimize inclusion size and distribution. High purity material is strictly required for high-fatigue, permanent implants like heart valves to prevent micro-cracks and ensure long-term survival.
A: The Active Austenite Finish (Af) temperature dictates when the material fully transitions to its rigid, superelastic state. For self-expanding medical devices, the Af temperature must be set below human body temperature (37°C). This ensures the device fully expands and remains superelastic once deployed inside the patient.
A: Yes, it is safe when processed correctly. Nitinol contains over 50% nickel, which can cause allergic reactions. However, proper passivation and electropolishing processes create a robust titanium dioxide surface layer. This layer prevents nickel leaching, making the material highly biocompatible and safe for permanent implantation.
A: Standard tolerances for medical capillary tubing are extremely tight to ensure device precision. Outer diameter (OD) and inner diameter (ID) tolerances typically range from +/- 0.0005 inches to +/- 0.001 inches. Strict concentricity tolerances are also required to ensure uniform wall thickness for laser cutting.
A: Direct fusion welding to dissimilar metals like stainless steel is highly problematic. It forms brittle intermetallic compounds that fail under stress. Engineers use alternative methods like mechanical crimping, medical-grade adhesives, or specialized laser welding using intermediate materials like tantalum to create reliable joints.
A: Electropolishing removes the dark oxide layer and heat-affected zones created during manufacturing. It creates a microscopic, mirror-like surface finish. This smooth surface improves corrosion resistance, enhances biocompatibility by preventing blood pooling, and significantly extends the fatigue life of the device by removing surface micro-scratches.
