Types Based on Sampling Position:
· Endoscopic Ultrasound (EUS): Used for sampling tissues in the
gastrointestinal tract.
· Endobronchial Ultrasound (EBUS): Used for sampling tissues in the
lungs and mediastinum.
Application:
· Used for ultrasound-guided fine needle aspiration biopsy and tissue
sampling.
· Targets diseased tissues like those in the esophagus, stomach,
duodenum, pancreas, gallbladder, trachea, bronchial branches,
lungs, mediastinal, and hilar lymph nodes.
| Model | Puncture needle ( CoCr / Nitinol ) | Stylet ( Nitinol ) | Sheath Peek Tube ( Black ) | |||||
| OD(mm) | ID(mm) | Length (mm) | D(mm) | Length (mm) | OD(mm) | ID(mm) | Length (mm) | |
| 19G | 1.10±0.01 | 0.9±0.01 | 1675±5 | 0.762±0.01 | 1695±5 | 1.8±0.02 | 1.2±0.02 | 1490±5 |
| 22G | 0.71±0.01 | 0.5±0.01 | 1675±5 | 0.406±0.01 | 1695±5 | 1.4±0.02 | 0.8±0.02 | 1490±5 |
| 25G | 0.52±0.01 | 0.3±0.01 | 1675±5 | 0.203±0.01 | 1695±5 | 1.2±0.02 | 0.6±0.02 | 1490±5 |

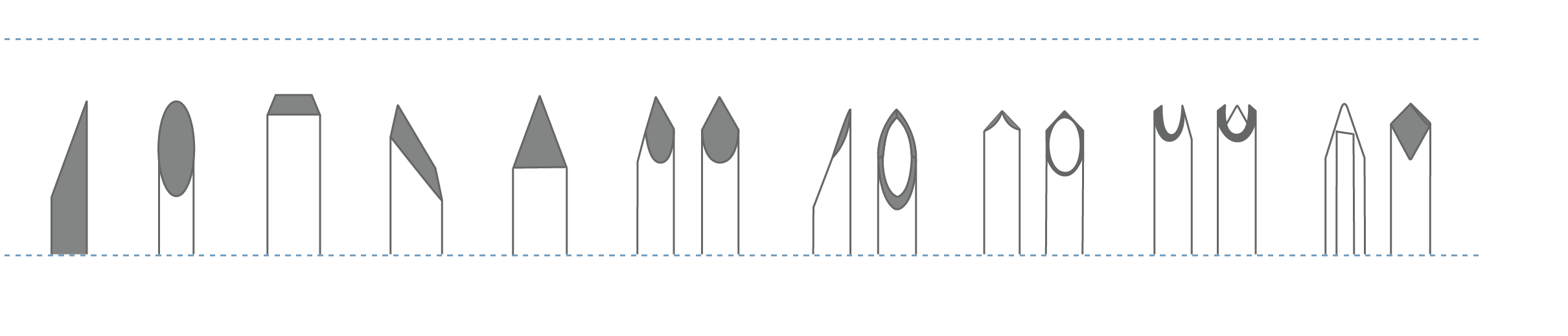

Forms of puncture needles

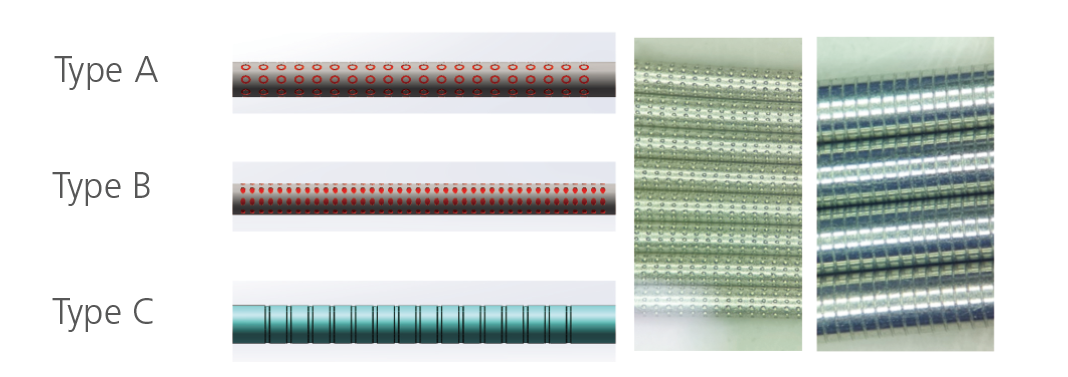

Types of echogenic marking
