Nitinol in MedTech: Engineering the Future of Interventional Devices through Advanced Material Science

Nitinol, a shape memory alloy (SMA) composed of near-equiatomic nickel and titanium, has become the core material for high-end medical devices in cardiovascular, neurointerventional, orthopedic, and dental fields. Characterized by its unique superelasticity, shape memory effect, and excellent biocompatibility, it serves as a critical cornerstone of modern minimally invasive medical technology.

I. Unique Functional Mechanisms and Physical Properties

In the temperature range above Af (Austenite Finish temperature) and below Md (Martensite Deformation temperature), Nitinol can undergo reversible deformation of up to 8% under external force—far exceeding the ~0.2% elastic limit of conventional metals. Upon unloading, it rapidly recovers its original shape, combining exceptional flexibility with structural support. The loading and unloading cycles exhibit mechanical hysteresis, making it perfectly suited for scenarios such as radial support in stents and the flexible navigation of guidewires. Furthermore, its plateau stress changes stably with temperature, ensuring precisely controllable performance within the 37°C human body environment.

At lower temperatures, the alloy exists in the Martensite phase, allowing it to be easily deformed. When heated above As (Austenite Start temperature), a diffusionless reversible phase transformation occurs in the crystal lattice, causing the material to automatically return to its pre-set shape. This mechanism is the core principle behind self-expanding stents and the precise deployment of interventional devices.

II. Fundamental Advantages and Material Safety

Nitinol possesses several critical foundational advantages:

• Biocompatibility: A dense TiO2 passivation layer forms naturally on its surface, providing excellent corrosion resistance. Its nickel ion release rate is lower than that of medical-grade stainless steel, ensuring safety for long-term implantation.

• Controllability: Through composition adjustment, cold working, and heat treatment, phase transformation temperatures such as Af and Ms can be precisely tuned to match specific application scenarios.

• Biomechanical Compatibility: Its elastic modulus is close to that of human bone, effectively reducing stress shielding and enhancing both patient comfort and long-term implant stability.

III. Material Standards and Advanced Preparation

In the material and preparation stages, Nitinol adheres to rigorous medical-grade standards. The chemical composition strictly follows ASTM F2063, with nickel content controlled between 54.5–57.0 wt% and titanium as the balance. Strict limits are placed on impurities such as carbon, oxygen, and hydrogen to ensure implant safety from the source.

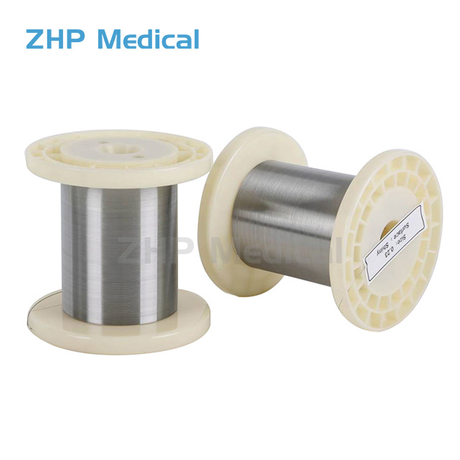

Smelting and processing utilize specialized techniques to minimize inclusions and enhance purity, uniformity, and fatigue life. Through thermo-mechanical processing—including forging, rolling, and drawing—the alloy is manufactured into semi-finished forms such as wires, tubes, strips, and plates to meet diverse device manufacturing needs. For high-demand applications, advanced series have been developed:

• High-Purity/Low-Inclusion Series: Dramatically reduces oxides and inclusions to significantly improve fatigue performance and corrosion resistance for high-load, long-term implants.

• High-Strength/High-Modulus Series: Features higher elastic moduli and plateau stress to support miniaturized and thin-walled device designs, further expanding the boundaries of minimally invasive intervention.

IV. Precision Processing and Assembly

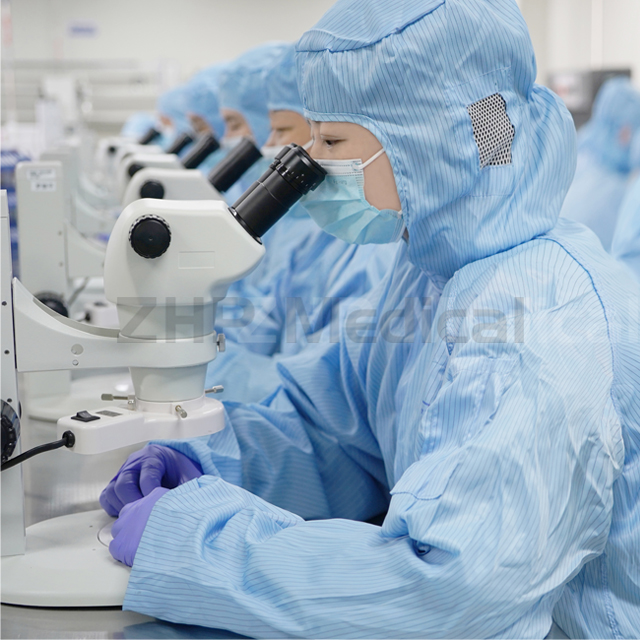

Precision manufacturing is the critical link in transforming Nitinol into medical devices.

• High-Precision Forming: Techniques include Femtosecond Laser Cutting, which features minimal heat-affected zone (HAZ) and negligible recast layer. This allows for the micro-scale high-precision processing of complex structures like stents and filters while significantly reducing post-processing steps.

• Shape Setting: The final morphology of the device is "locked" by constraining it in a fixture and heat-treating it above 500°C followed by a rapid water quench, ensuring stable and reliable shape retention.

• Joining and Surface Treatment: Laser welding, plasma welding, and crimping are employed for reliable assembly, avoiding the brittleness associated with welding dissimilar metals. Surface treatments—such as sandblasting, mechanical tumbling, chemical etching, and electropolishing—reduce surface roughness and comprehensively enhance corrosion resistance, fatigue life, and biocompatibility.

V. Multi-Field Clinical Solutions

Leveraging its superior material properties, Nitinol has become the core solution across multiple medical domains:

• Cardiovascular Intervention: Used in self-expanding stents, heart valve frames, and occluders, utilizing superelasticity and shape memory for minimally invasive delivery and tight apposition to vessel walls.

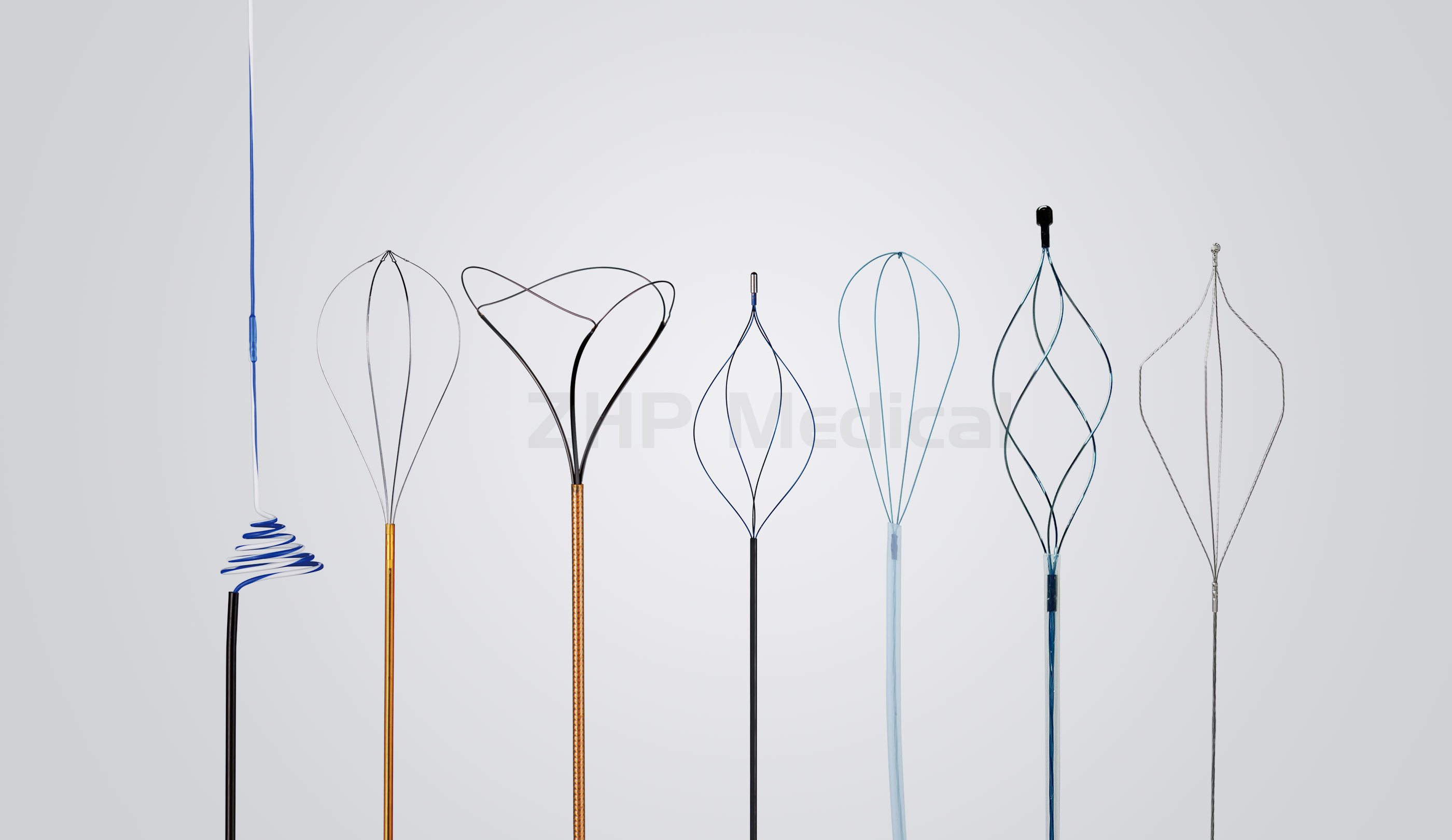

• Neuro and Peripheral Intervention: Microcatheters, thrombectomy stents, and guidewires balance excellent flexibility and support, allowing them to navigate complex, tortuous anatomical structures.

• Orthopedics and Spine: Bone staples, rods, and suture anchors offer lightweight, high-elasticity solutions that minimize stress-related damage to bone tissue.

• Dentistry: Orthodontic archwires and endodontic files utilize superelasticity to provide gentle, continuous corrective forces, improving treatment comfort and outcomes.

VI. Design Standards and Quality Control

In the design and quality control of medical devices, Nitinol follows explicit criteria:

• Strain Management: Functional strain is strictly controlled (≤6% for wires, ≤4% for tubes) and forming strain is kept ≤25% to guarantee long-term fatigue life. Under low strain (≤0.5%), the material can withstand millions of cycles.

• Sterilization Compatibility: Performance remains unaffected under 300°C, making it compatible with steam, Ethylene Oxide (EtO), and Gamma radiation sterilization.

• Standardized Testing: Phase transformation temperatures are calibrated via DSC and BFR tests, and corrosion resistance is evaluated using ASTM F2129, ensuring full compliance with medical implant regulations.

Conclusion

With its three core advantages—intelligent phase transformation, superelastic flexibility, and biological safety—Nitinol has shattered the performance boundaries of traditional metallic materials. It continues to drive the evolution of minimally invasive medicine toward smaller incisions, higher precision, and longer device lifespans. As a premier intelligent material, Nitinol empowers innovation in high-end medical devices, providing safer and more efficient diagnostic and therapeutic solutions for patients worldwide.
